Double-wheel high-speed nail thread rolling machine 3000pcs/min

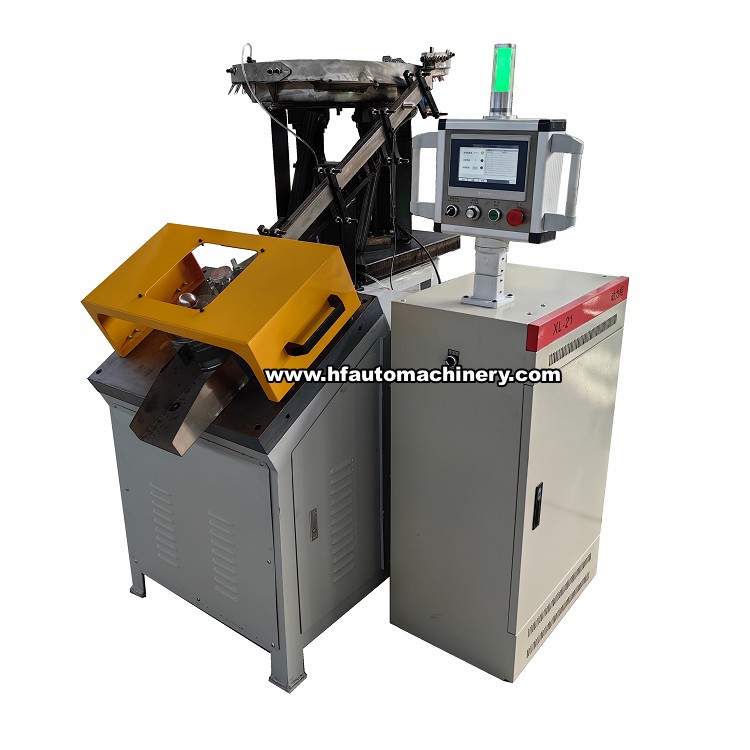

Double-wheel high-speed nail thread rolling machine

HAM-GS-100-3000   3000pcs/min



 New high-speed nail thread rolling machine.jpg



Technical parameters:

Model   NO.HAM-GS-100-3000Remarks
Nail Length   Range25-100 MM
The actual power consumption of this equipment is 4-6KW, which is related   to the speed, nail size etc.
Nail Dia.   Range1.8-3.6 MM
Maximum Speed
3000   PCS/MIN
Main motor power5.5 KW
General power6 KW


Features and Advantages:

1.    Maximum speed 3000pcs/min, increase productivity and save working space.

2.    Nail jam automatic stop, if there is a defective nail to send nails to the mold when the nail will automatically stop, and in the touch screen display.

3.    Vibratory bowl exit stuck nails or vibratory bowl no nails will be automatically shut down, and displayed on the touch screen.

4.    Touch screen man-machine interaction, display running speed, working status, easy to adjust.

5.    High-speed rolling machine WIFI remote function:

a.    The touch screen of the machine can be connected to the network through the hotspot of the cell phone.

b.    The touch screen parameters can be viewed and modified remotely.

c.    The touch screen and PLC program can be upgraded remotely, and the PLC working contacts can be modified.


Machine Composition:

1.    Main machine of thread rolling machine

2.    Vibrating bowl

3.    Electric control cabinet.


The equipment comes with a set of nail rolling dies (customized), spare sensors, relays, etc.


1. Equipped with independently developed vibrating bowl

A. Weight 470kg

B. With six sets of vibrating plates (15°)

C. Bigger diameter bowl (φ850mm)

D. Higher speed

E. Low amplitude of nail jumping

F. Stable performance

2. Vibrating bowl controller

A. Adopts delay starting circuit

B. Equipped with isolated voltage regulating module

C. Multi-turn precision potentiometer control

D. Stable speed

3. The main motor can be adjusted speed

A. Stable and reliable by adopting Invt frequency converter.

B. With a variety of fault protection such as missing items, jammed overload, overvoltage, undervoltage, and etc.

nail thread rolling machine   nail thread rolling machine  nail thread rolling machine
