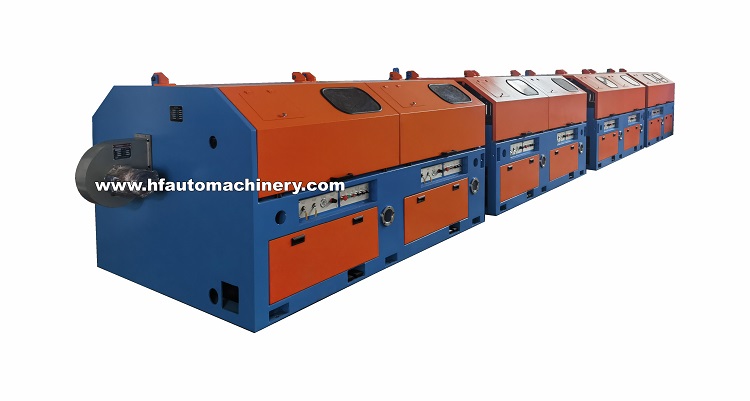

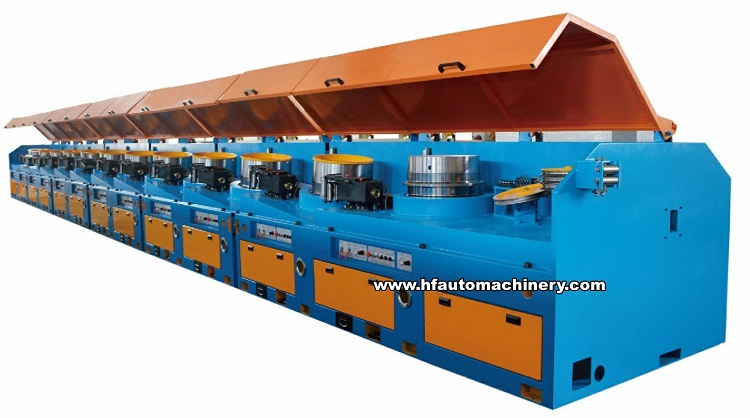

High-speed straight line wire drawing machine
High speed straight line wire drawing machine - adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts
Features:
1) Easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Running in a high automation and intellectualization, with no pollution
4）The transmission structure adopts hardened gear reducer + narrow V-belt or flat double wrapped turbine reducer + narrow V-belt with low noise;
5）All the drums adopt narrow slit water cooling and air cooling, with excellent cooling effect;
6) The speed control method adopts AC frequency conversion and Siemens PLC, which is a kind of drawing equipment with high efficiency, convenient operation, high automation degree and wide process range.
Specifications:
Model | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
Strength of Inlet Wire (mpa) | ≦1250 | ||||||||
Drawing times | 2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2.9 | 2.9 |
Max. Diameter of Inlet Wire(mm) | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 12.7 |
Min. Diameter of Outlet Wire(mm) | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.1 | 1.6 | 2.2 | 2.6 |
Fastest Wire Drawing Speed(m/s) | -25 | -20 | -20 | -16 | -15 | -15 | -12 | -12 | -8 |
Power(kw) | 7.5-18.5 | 11-22 | 11-30 | 15-37 | 22-45 | 22-55 | 30-75 | 45-90 | 55-110 |
Applicable Wire | *Steel Wire ( High carbon, medium carbon and low carbon steel wire, stainless steel wire, pre-stress steel wire, bead wire, rubber tube wire, spring steel wire, cord thread steel wire, etc) *Welding stick (MIG welding wire submerged arc welding wire, flux-cored wire, etc.) *Alloy wire | ||||||||
Description:
Suitable for drawing various metal wire less than 16mm, especially suitable for drawing high quality wire, gas shielded wire, aluminum clad steel wire, pre-stressed steel wire, hose steel wire, spring steel wire, steel cord steel wire and medium and high carbon steel wire.
Adopting first-class strong narrow V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise;
Adopting fully enclosed protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC);
Programmable control system
Screen display
High degree of automation
Easy operation
