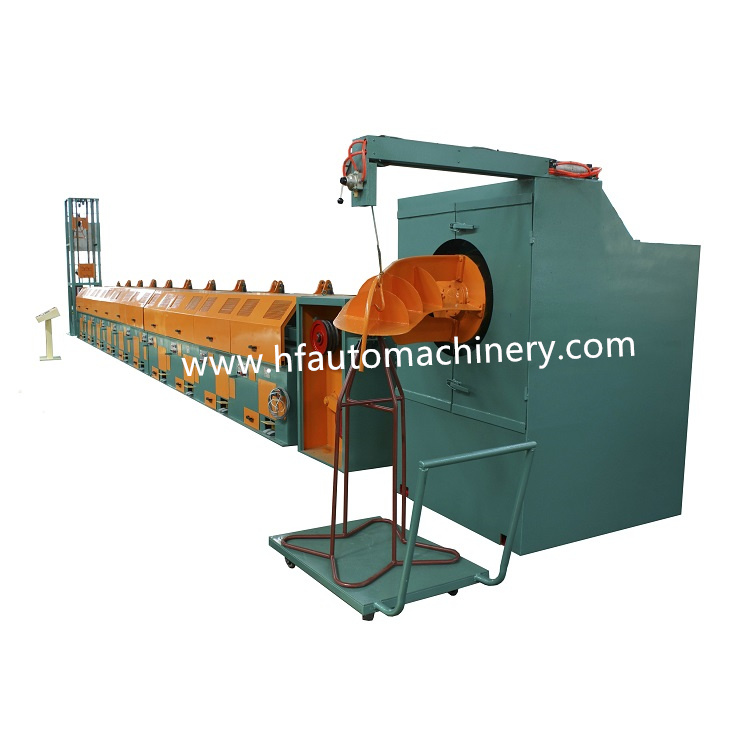

High speed straight-line wire drawing machine

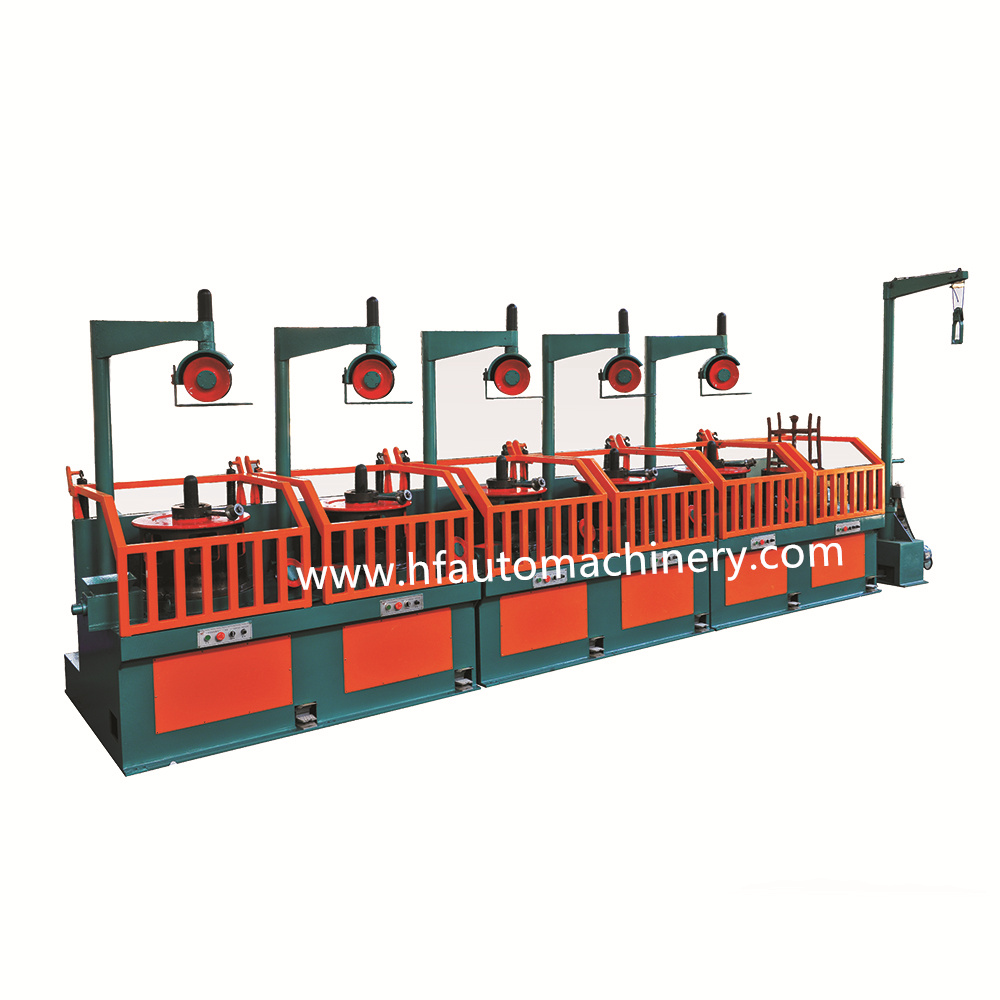

wire drawing machine Pulley type wire drawing machine
Features:
1) Easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Running in a high automation and intellectualization, with no pollution
4) As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5) Good cooling system, final wire quality is very good.
Model | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
Strength of Inlet Wire (mpa) | ≦1250 | ||||||||
2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2.9 | 2.9 | |
Max. Diameter of Inlet Wire(mm) | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 12.7 |
Min. Diameter of Outlet Wire(mm) | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.1 | 1.6 | 2.2 | 2.6 |
Fastest Wire Drawing Speed(m/s) | -25 | -20 | -20 | -16 | -15 | -15 | -12 | -12 | -8 |
Power(kw) | 7.5-18.5 | 11-22 | 11-30 | 15-37 | 22-45 | 22-55 | 30-75 | 45-90 | 55-110 |
Applicable Wire | *Steel Wire ( High carbon, medium carbon and low carbon steel wire, stainless steel wire, pre-stress steel wire, bead wire, rubber tube wire, spring steel wire, cord thread steel wire, etc) *Welding stick (MIG welding wire submerged arc welding wire, flux-cored wire, etc.) *Alloy wire | ||||||||
Specifications:
Video
Description:
Suitable for drawing various metal wires below 16mm, especially suitable for drawing high quality wire, gas shielded wire, aluminum clad steel wire, pre-stressed steel wire, hose steel wire, spring steel wire, steel cord steel wire and medium and high carbon steel wire.
Adopting first-class strong narrow V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise;
Adopting fully enclosed protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC);
Programmable control system
Screen display
High degree of automation
Easy operation
